HOLD BAGGAGE SCREENING
High-performance dual-view X-ray inspection for checked baggage.

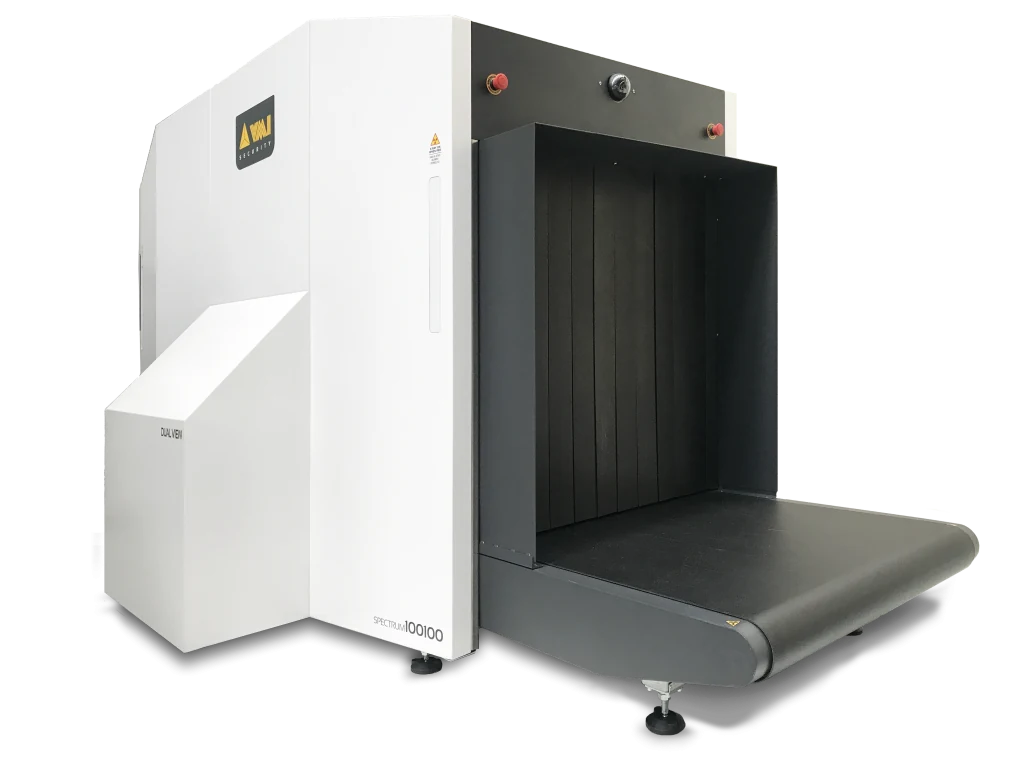

The VMI 100100HDV is a TSA Qualified dual-view X-ray system designed for hold baggage screening in airports. Built for integration with baggage handling systems or standalone operation, it delivers high-quality imaging, reliable performance and efficient screening of checked baggage.
Overview
The VMI 100100HDV has been developed to meet the operational requirements of modern airports where checked baggage must be screened efficiently without disrupting baggage flow.
Its dual-view imaging technology provides two simultaneous inspection angles, improving image interpretation while supporting high-throughput airport operations. The system is suitable for new airport developments, terminal expansions and upgrades to existing baggage screening infrastructure.
Key Highlights
TSA Qualified
Designed for airport hold baggage screening applications requiring TSA-qualified equipment.
Dual-View Imaging
Two simultaneous images reduce object overlap and improve inspection confidence.
BHS Ready
Can operate as a standalone system or integrate into airport baggage handling systems.
High Throughput
Designed for continuous operation in demanding airport environments.
Advanced Image Processing
Provides detailed visualization with multiple image-enhancement tools.
Network Integration
Supports centralized image management and operational monitoring.
Typical Applications
- Airport hold baggage screening
- Checked baggage inspection
- Terminal expansion projects
- Airport modernization
- International airports
- Regional airports
Technical Specifications
Specifications below are taken from the official VMI Spectrum 100100HDV brochure supplied for this project.
| Tunnel Size | 1013 (W) x 1003 (H) mm |
|---|---|
| Imaging Configuration | Dual view |
| Generator Voltage | 160 kV operating at 150 kV; optional 180 kV operating at 170 kV |
| Conveyor Speed | 0.22 m/s, adjustable |
| Conveyor Load | 200 kg |
| Wire Resolution | 40 AWG |
| Steel Penetration | 38 mm at 150 kV; 40 mm at 170 kV |
| Monitor | High-resolution monitor; configurable size |
| Image Storage | More than 200,000 images |
| Operating Temperature | 0 degrees C to 40 degrees C; 5% to 95% RH, non-condensing |
| Power Requirements | 110-127 VAC / 208-240 VAC (-15% to +10%); 50/60 Hz +/-3 Hz; 1070 VA |
| Dimensions | 3483 (L) x 1724 (W) x 1980 (H) mm |
| Weight | 1514 kg |
Built for Airport Operations
Hold baggage screening equipment must operate as part of a larger airport process. The 100100HDV is designed to support continuous baggage flow, integration with baggage conveyors and intensive daily operation.
Continuous Flow
Supports efficient baggage movement through demanding screening operations.
Conveyor Integration
Can be configured for standalone use or integration with baggage conveyor systems.
Operational Reliability
Engineered for high reliability, low operational downtime and intensive daily operation.
Image Enhancement Functions
- Organic, inorganic and mixed-material colour differentiation
- Variable contrast and sharpness
- Edge enhancement
- High penetration
- Zoom above 128×
- Negative and colour inversion
- Black-and-white mode
- Pseudo colour modes
- Automatic image saving and recall
- Real-time image manipulation
Compliance
The supplied VMI brochure displays the following qualification, compatibility and quality marks:
Optional Functions and Accessories
- Modular roller tables and conveyor extensions
- UPS
- Conveyor-system integration
- Remote workstation
- Remote management software
- Camera
- Tunnel protection extension
- Wi-Fi capability
- Training software
- Operator and technical training
- Preventive maintenance package
- ASTM standard test kit
Why Choose the 100100HDV?
Ideal For
- Airports upgrading existing HBS systems
- New airport terminals
- Regional airports
- International hubs
- Government aviation authorities
Operational Value
- TSA-qualified screening platform
- Two simultaneous inspection views
- Standalone or conveyor-integrated operation
- Network and remote-management capability
- Lifecycle support from Screenix
Frequently Asked Questions
Is the 100100HDV suitable for BHS integration?
Yes. It is designed to support both standalone operation and integration with airport baggage handling systems, depending on the project configuration.
Is this system TSA Qualified?
Yes. TSA qualification is documented in the supplied VMI product brochure.
Can it screen oversized checked baggage?
It is designed for hold baggage within its specified 1013 mm by 1003 mm tunnel opening. Oversized items may require a larger cargo inspection system.
Is operator training included?
Operator and technical training, commissioning and maintenance services can be provided as part of the project scope.
Downloads
Product Brochure and Technical Data
Official VMI Spectrum 100100HDV brochure with specifications, standard functions and available accessories.
Product Image
High-resolution transparent product image for project documentation and presentations.
